Imagine this: You’ve got a cool old car, and you’re dreaming of the power and rumble of a modern LS engine. It’s an exciting project! But then you hit a roadblock. You need a way to connect that new engine to your car’s brain – the electrical system. This is where the LS swap harness comes in, and oh boy, can it be a confusing puzzle.
Choosing the right LS swap harness can feel like navigating a maze. There are so many wires, so many brands, and so many different needs for different cars. It’s easy to get overwhelmed and worry about making a mistake that could cost you time and money. You want your swap to be smooth and reliable, not a constant headache.
But don’t worry! This post is here to make that maze a lot clearer. We’ll break down what you need to know about LS swap harnesses, helping you understand the options and avoid common pitfalls. By the end, you’ll feel much more confident in picking the perfect harness for your project. Let’s dive in and get your LS swap wired up right!

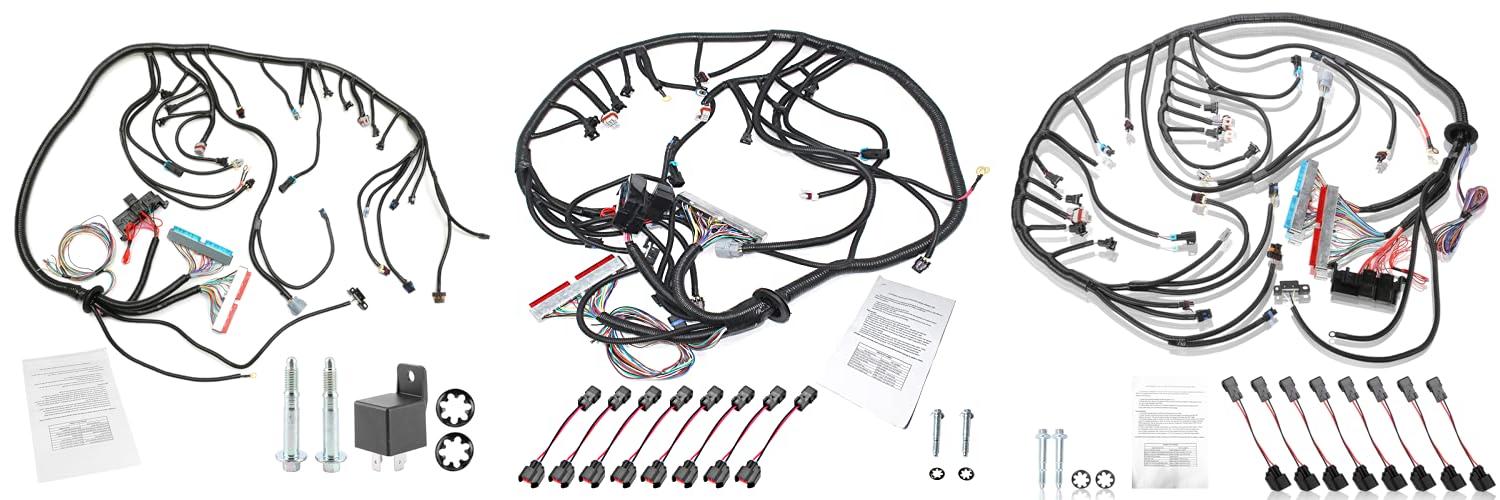

Our Top 5 Ls Swap Harness Recommendations at a Glance
Top 5 Ls Swap Harness Detailed Reviews
1. Standalone Wiring Harness
Rating: 9.4/10
This standalone wiring harness is designed for GM LS1 Vortec engines from 1997 to 2006. It works with 4.8L, 5.3L, and 6.0L engines and is compatible with 4L60E transmissions. It’s also suitable for 4L80E transmissions with an adapter. This harness is for drive-by-cable throttle bodies, making LS swaps easier.
What We Like:
- OEM design makes installation simple and straightforward.
- Built with high-quality copper wires for excellent electrical conductivity and durability.
- Wires can handle high temperatures and resist chemicals and impact.
- Includes all necessary connectors for engine and transmission sensors, EV1 fuel injectors, fuse blocks, MAF sensor, and crank sensor.
- Comes with detailed installation instructions and a parts list.
- Features universal color-coded connectors for easy identification.
- Offers a 10-year (120-month) warranty for peace of mind.
What Could Be Improved:
- Professional installation is recommended, which might add to the overall cost for some DIYers.
- Requires an adapter for use with 4L80E transmissions, adding an extra component to purchase.
This wiring harness offers a robust and user-friendly solution for LS engine swaps. Its comprehensive kit and strong warranty make it a reliable choice for your project.
2. 5.3 Wiring Harness ls Engine Wiring Harness Compatible with 1999-2006 DBC LS1 4.8 5.3 6.0 Vortec Drive by Cable 4L60E
Rating: 8.8/10
Upgrade your ride with this 5.3 Wiring Harness. It’s designed for LS1 engines from 1999 to 2006, perfect for Chevy, GMC, Cadillac, and Hummer trucks. This harness works with 4.8L, 5.3L, and 6.0L Vortec engines that use Drive-By-Cable. It also handles the 4L60E transmission. The kit comes with a helpful wiring guide manual to make installation easier.
What We Like:
- This harness includes all the important dash connections you need. You get connections for your speedometer, tachometer, park/neutral safety switch, torque converter clutch (TCC), and the malfunction indicator light.
- It also provides a diagnostic port (DLC) for easy computer scanning.
- The wiring is extra long, giving you an extra 36 inches. This makes it simple to mount your engine control unit (PCM) under the dash.
- Installation is a breeze thanks to the color-coded plugs and included instructions. It’s designed to be plug-and-play.
- A high-quality rubber grommet is already installed on the harness. You can slide it to the perfect spot for mounting.
- The company offers great support. If you have questions, they’ll help you out right away.
- They stand behind their product. If there are any quality issues, they’ll send you a new one.
What Could Be Improved:
- While it covers many vehicles, double-check compatibility for very specific models outside the core Chevy/GMC truck range.
- The included wiring guide is helpful, but for absolute beginners, a more visual guide might be even better.
This wiring harness is a solid choice for your LS engine swap. It simplifies the process and ensures your engine and transmission communicate correctly.
3. HUGEBO LS Swap Standalone Harness with 4L60E
Rating: 8.6/10
Tired of engine swap headaches? The HUGEBO LS Swap Standalone Harness is here to make your life easier. This wiring harness is designed specifically for LS engines with a 4L60E transmission, covering a wide range of GM vehicles from 1997 to 2006. It’s built to handle the power of your LS1, 4.8L, 5.3L, or 6.0L Vortec engine, and it’s drive-by-cable compatible, which simplifies the setup process.
What We Like:
- Wide Compatibility: Works with many Chevy, GMC, Cadillac, and Hummer trucks from 1997-2006.
- All the Right Connections: Includes important hookups like Tachometer, Speedometer, Park Neutral, and more.
- Simple to Install: Features plug-and-play, color-coded connectors and clear instructions.
- Built to Last: Made with high-quality copper wires that are tough and resist damage.
- Everything You Need: Comes with the harness, mounting screws, and detailed manuals.
- Great Support: Quick customer service responses and easy returns.
What Could Be Improved:
- Professional Install Recommended: While designed for easy installation, professional help might still be needed for some.
This harness offers a robust solution for your LS swap project. It’s a quality choice that should help you get your project on the road with fewer complications.
4. 4L60E Engine Wiring Harness LS Swap Standalone Wire Compatible with GM DBC LS1 4.8L 5.3L 6.0L Vortec Engines 1997-2006. W/4L60E Transmission Drive by Cable
Rating: 8.9/10
Looking to swap a GM LS engine into your ride? This 4L60E Engine Wiring Harness is a game-changer for your project. It’s designed specifically for LS1, 4.8L, 5.3L, and 6.0L Vortec engines made between 1997 and 2006. This harness works with Drive by Cable (DBC) systems and the 4L60E transmission, making your LS swap much smoother. It’s built with quality materials to ensure reliable performance.
What We Like:
- Made with copper core wires for excellent electrical conductivity.
- The wires are protected by a tough, wear-resistant, flame-retardant, and anti-corrosion plastic wrap.
- It’s designed to be plug-and-play, with color-coded connectors that make installation simple.
- Comes with easy-to-follow instruction manuals.
- The package includes everything you need: the wiring harness and an English manual.
- iKer offers great customer support and stands behind their product.
What Could Be Improved:
- While the manual is helpful, more detailed diagrams or video links could enhance the installation experience for beginners.
- Compatibility is specific to 1997-2006 models; a broader range of years would be a plus.
This wiring harness simplifies your LS swap significantly. With its durable construction and user-friendly design, it’s a solid choice for getting your project on the road.
5. ROADGIVE LS Swap Standalone Harness with 4L60E Transmission
Rating: 9.3/10
Ready to give your ride a serious power upgrade? The ROADGIVE LS Swap Standalone Harness is here to make your LS engine swap smoother than ever. This harness is designed specifically for 1997-2006 GM DBC LS1 engines with the 4L60E transmission. It’s perfect for those Vortec 4.8L, 5.3L, and 6.0L engines. This kit helps you connect your engine and transmission easily, making your project much simpler.
What We Like:
- Superior Conductivity: The wires are made of good quality copper. This means electricity flows really well and the wires last a long time. They resist corrosion and wear, so they won’t get damaged easily.
- Easy to Use: The harness is plug-and-play. This saves you a lot of time and confusion. You just plug it in, and it works!
- Complete Package: It comes with everything you need for the dash connections. You get connections for your speedometer, tachometer, park/neutral safety switch, torque converter clutch (TCC), check engine light, and a diagnostic port (DLC).
- Wide Compatibility: This harness works with many Chevy, GMC, Cadillac, and Hummer trucks from 1997 to 2006 that have the drive-by-cable LS1 engine and a 4L60E transmission (you’ll need an adapter for the transmission).
- Clear Instructions: The package includes a user manual to guide you through the installation.
What Could Be Improved:
- Adapter Needed: While it’s compatible with the 4L60E transmission, you’ll need an adapter for it. This isn’t included in the main harness itself.
- Vortec Engine Specifics: This harness is for DBC (Drive By Cable) LS1 engines. If your engine uses a different system, this harness won’t work.
Overall, this ROADGIVE LS Swap Standalone Harness simplifies your engine swap project. It offers great quality and makes connecting your engine and transmission much easier.
Your Guide to Choosing the Right LS Swap Harness
So, you’re thinking about an LS swap for your ride? That’s awesome! Putting a powerful General Motors LS engine into another vehicle can make it a whole new beast. But to make that happen smoothly, you need the right LS swap harness. This guide will help you pick the best one.
Why You Need an LS Swap Harness
An LS swap harness is like the nervous system for your new engine. It connects all the wires from the LS engine’s computer (ECU) to the rest of your car. It makes sure everything talks to each other correctly – the fuel pump, the ignition, the dashboard gauges, and more. Without the right harness, your engine won’t run, or it might not run well.
Key Features to Look For
When you’re shopping for an LS swap harness, keep these important features in mind.
Compatibility is King
Does it fit your engine?
Make sure the harness is designed for the specific LS engine you have. Different LS engines (like the LS1, LS2, LS3, etc.) have different wiring needs. Check the product description carefully to confirm it matches your engine family.
Does it fit your car?
Some harnesses are designed for specific vehicle types or years. While many are universal, some are made to plug directly into certain older vehicles. A universal harness will work in most cases, but you might need to do a bit more custom wiring.
Quality Wires and Connectors
Wire Gauge
Thicker wires (lower gauge number) can handle more electricity. Good harnesses use the right gauge wire for each circuit, so nothing overheats or fails.
Connector Quality
The connectors are where the wires plug into your engine and other parts. High-quality connectors are durable, weatherproof, and make a secure connection. Cheap connectors can cause problems down the road.
Built-in Features
Injector Connectors
Look for a harness that comes with the correct connectors for your engine’s fuel injectors. Some might be plug-and-play, while others require you to crimp on your own.
Fan Control
Many harnesses include wiring to control your electric cooling fans. This is a big help for keeping your engine at the right temperature.
Check Engine Light (CEL) Management
A good harness should allow your check engine light to function properly. Some even have options to disable certain codes if needed, but use this feature wisely.
Important Materials
The materials used in your LS swap harness matter a lot for its lifespan and reliability.
Wire Insulation
The best harnesses use high-temperature, abrasion-resistant wire insulation. This protects the wires from heat under the hood and from rubbing against other parts. Materials like PVC or Tefzel are common.
Connectors
Look for connectors made from durable plastic that won’t become brittle over time. Delphi and Weather Pack connectors are often used because they are tough and provide a good seal against moisture.
Sleeving/Conduit
The entire harness is usually wrapped in protective sleeving or conduit. This shields the wires from dirt, oil, and physical damage. Braided loom or split loom tubing are common.
Factors That Improve or Reduce Quality
Understanding what makes a harness great versus just okay will save you headaches.
Quality Improvements
Custom Lengths
Some companies offer harnesses in custom lengths. This helps you route the wires neatly and avoid excess slack, making for a cleaner engine bay.
Detailed Instructions
A harness with clear, step-by-step instructions and diagrams is a huge quality booster. It makes the installation process much easier, especially for beginners.
Pre-Terminated Ends
Harnesses where the ends are already crimped or soldered onto the connectors save you a lot of time and effort. It also reduces the chance of bad connections.
Quality Reducers
Generic Connectors
Using cheap, unbranded connectors can lead to poor connections, corrosion, and eventual failure. Stick with reputable brands.
Undersized Wires
Wires that are too thin for the job can overheat, melt, and cause electrical fires. Always check the wire gauge.
Lack of Labeling
A harness with poorly labeled wires or no labels at all is a recipe for confusion and mistakes during installation.
User Experience and Use Cases
How a harness performs in the real world is crucial.
Ease of Installation
A well-designed harness should be relatively easy to install. This means clear labeling, good quality connectors, and instructions that make sense. If you’re new to wiring, look for harnesses that are more plug-and-play.
Reliability
Once installed, a good LS swap harness should just work. It should keep your engine running smoothly without any electrical gremlins. This means no random misfires, no dead sensors, and all your gauges working correctly.
Common Use Cases
- Swapping an LS engine into classic muscle cars (Camaro, Chevelle, Mustang).
- Putting an LS into trucks and SUVs for more power and better fuel economy.
- Custom builds where an LS engine is being fitted into a unique vehicle.
- Restoration projects that require modern engine technology.
Frequently Asked Questions: LS Swap Harnesses
Q: What is an LS swap harness?
A: An LS swap harness is a set of wires that connects your LS engine’s computer (ECU) to your car’s electrical system. It lets all the engine parts talk to each other.
Q: Do I need a special harness for an LS swap?
A: Yes, you usually need a special LS swap harness. Your original car’s wiring won’t connect directly to the LS engine’s computer.
Q: How do I know which harness fits my LS engine?
A: Check the product description for the specific LS engine model (like LS1, LS2, LS3). Most harnesses are made for a particular engine family.
Q: Can I use a universal LS swap harness?
A: Yes, universal harnesses work for many swaps. You might need to do a bit more custom wiring to connect it to your car’s systems.
Q: What are the most important materials to look for in a harness?
A: Look for high-temperature wire insulation and durable, weatherproof connectors like Delphi or Weather Pack.
Q: How can I tell if a harness is high quality?
A: High quality means good wire gauge, strong connectors, clear labeling, and good instructions. Pre-terminated ends also show good quality.
Q: What happens if I buy a low-quality harness?
A: You might have problems with your engine not running right, electrical issues, or even fires. It can be a real headache.
Q: Will the harness make my dashboard gauges work?
A: Yes, a good LS swap harness should include wiring to connect your engine’s sensors to your car’s dashboard gauges for things like RPM, oil pressure, and temperature.
Q: Can I install an LS swap harness myself?
A: Yes, many people install these harnesses themselves. Having good mechanical and electrical skills, along with clear instructions, makes it easier.
Q: Where is the best place to buy an LS swap harness?
A: You can find them from specialized LS swap parts companies, online automotive retailers, and some performance parts stores. Always check reviews.
In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.
If you have any questions or feedback, please share them in the comments. Your input helps everyone. Thank you for reading.
