Ever wondered what makes your air conditioner or heater work just right? It’s not magic! It’s often a complex dance of different gases and pressures, and knowing what’s happening inside is super important for anyone working with HVAC systems. But when you need to check those pressures, you’ll probably reach for a tool called HVAC manifold gauges.
Choosing the right manifold gauges can feel like a puzzle. There are so many types, and they all look a little different. You might worry about picking one that’s too complicated, not accurate enough, or just plain wrong for the job you need to do. This can lead to wasted money and frustrating guesswork.
Don’t worry! By the end of this post, you’ll understand what these gauges are, why they’re so useful, and how to pick the perfect set for your needs. We’ll break down the jargon and help you feel confident in your choice. Get ready to become a manifold gauge expert!

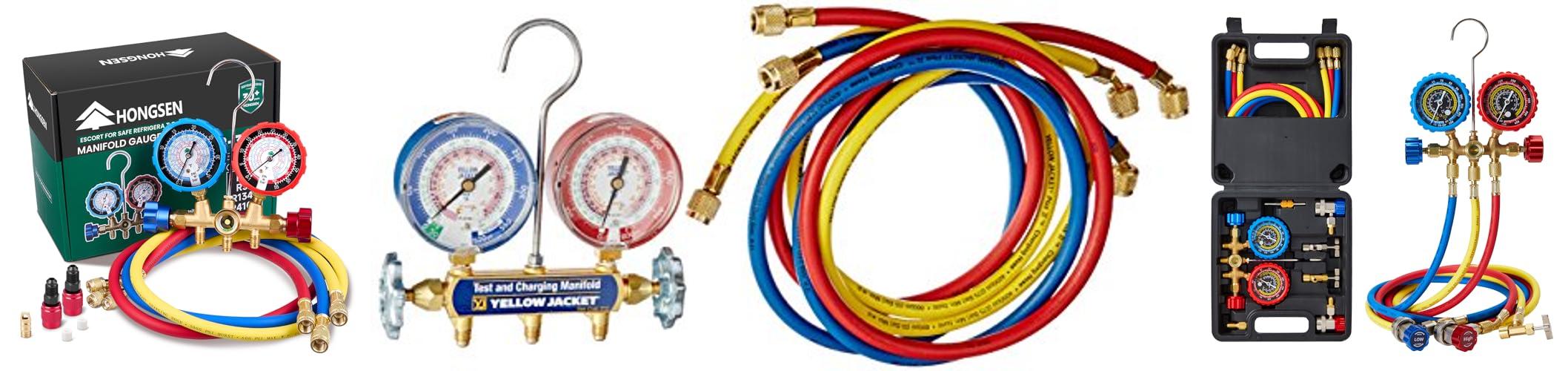

Our Top 5 Hvac Manifold Gauges Recommendations at a Glance
Top 5 Hvac Manifold Gauges Detailed Reviews
1. Hongsen HVAC Manifold Gauge Set with Brass Body and Explosion-Proof Lens
Rating: 8.6/10
The Hongsen HVAC Manifold Gauge Set is built for serious work on air conditioning and refrigeration systems. It handles common refrigerants like R410A, R32, R134a, and R22. This set helps you check pressures accurately and safely. It comes with everything you need to get started, including hoses and adapters.
What We Like:
- The heavy-duty brass body makes it last a long time. It can handle high pressures without problems.
- The protective sleeve on the gauge is tough. It stops the gauge from breaking if it gets dropped.
- You can easily hang the gauge with the quick-detach hook. This makes it handy for working on different jobs.
- The metal control knob is smooth and easy to turn. It lets you adjust pressures with precision, even when wearing gloves.
- The explosion-proof lens is a key safety feature. It shows you the pressure clearly and prevents dangerous bursts.
- The gauges are built tough for the shop. They have clear dials showing 500/800 PSI and are made to avoid breaking.
- It’s a complete kit. You get the manifold, hoses, and adapters, so you have the essential tools for servicing AC systems.
What Could Be Improved:
- The hoses are 3 feet long. For some very large systems, longer hoses might be more convenient.
- While it includes R410A adapters, if you primarily work with older systems that only use R22 or R134a, you might need to purchase additional specific adapters.
This Hongsen gauge set offers robust features for professionals. It’s a reliable tool for accurate and safe refrigerant work.
2. Yellow Jacket 42004 Series 41 Manifold with 3-1/8″ Gauge
Rating: 8.8/10
The Yellow Jacket 42004 Series 41 Manifold is a handy tool for anyone working with air conditioning systems. It helps you measure the pressure of different refrigerants like R-22, R-404A, and R-410A. The large 3-1/8″ gauge makes it easy to read the psi, or pounds per square inch. This manifold is built by Yellow Jacket, a trusted name in HVAC tools, and it’s a Ritchie Charging Manifold Assembly, model 484245. It’s designed to be reliable and get the job done efficiently. This tool will help you check and charge your AC systems correctly.
What We Like:
- The 3-1/8″ gauge is big and easy to read, so you can see the pressure clearly.
- It works with common refrigerants like R-22, R-404A, and R-410A, making it versatile.
- Yellow Jacket is a well-known brand, so you can trust its quality.
- The package dimensions are compact (2″ x 2″ x 2″) and it only weighs 2 lbs, so it’s not bulky to carry around.
What Could Be Improved:
- More detailed instructions on how to connect and use it with different systems could be helpful for beginners.
- While it’s a good tool, a carrying case or protective cover would be a nice addition to keep it safe.
This Yellow Jacket manifold is a solid choice for HVAC technicians and DIYers. It offers clear readings and works with popular refrigerants, making it a valuable addition to your toolkit.
3. WISSCOOL AC Gauges HVAC Manifold Gauge Set for R134 R22 R12 R502
Rating: 8.8/10
The WISSCOOL AC Gauges HVAC Manifold Gauge Set is a comprehensive tool kit for anyone working with air conditioning systems. It helps you charge, check, and recover refrigerants safely and efficiently. This set is designed for various refrigerants like R134a, R22, R12, and R502, making it versatile for many jobs.
What We Like:
- It’s a complete kit with everything you need to start.
- The gauges are accurate and built to last with brass and aluminum.
- The 5-foot hoses give you plenty of reach.
- It includes different ways to tap into refrigerant cans.
- The moisture indicator helps you see the condition of your refrigerant.
- It’s easy to use, even for beginners, with a clear manual.
- The sight glass lets you watch the refrigerant flow.
What Could Be Improved:
- The adapters are for 1/4″ male to 1/2″ female, which might not fit all setups without additional adapters.
- While durable, the plastic parts on some components could be a concern for extremely heavy daily use.
This WISSCOOL AC Gauge Set is a solid choice for both DIYers and professionals needing a reliable tool for AC work. It offers good value and a complete package for many refrigerant tasks.
4. Elitech Digital Manifold Gauge Set for HVAC
Rating: 8.7/10
Tired of fumbling with old-school gauges and confusing charts? The Elitech Digital Manifold Gauge Set is here to make your HVAC and refrigeration work faster and easier. This smart tool takes the guesswork out of the job, giving you quick and precise readings of pressure and temperature. It’s designed for professionals who need reliable equipment that can handle tough jobs.
What We Like:
- No more guessing: Get instant, accurate pressure and temperature readings on the LCD screen. This saves you time and helps you avoid mistakes.
- Works with many refrigerants: It supports 88 different types, including R410A, R454B, and R134a. The included adapters make it simple to use with modern systems.
- Everything you need in one box: The kit comes with the digital gauge, three colored hoses, and two R410A adapters. You don’t need to buy extra parts.
- Built tough for the field: The gauge is strong and resists damage from drops, heat, and moisture. The hoses are made for high pressure, so they can handle demanding jobs.
- Saves battery and keeps readings: The auto shut-off and data hold features help the battery last longer and keep your readings steady. This means less worry and more focus on your work.
What Could Be Improved:
- While the digital display is clear, some users might prefer a larger font size for easier reading in bright sunlight.
- The included hoses are durable, but for extremely long runs, a slightly longer option might be beneficial for certain applications.
This Elitech set is a smart upgrade for any HVAC or refrigeration technician. It brings modern accuracy and convenience to your toolkit.
5. Fieldpiece SM382V Wireless 3-Port SMAN Refrigerant Manifold with Vacuum Gauge – Digital Gauges for HVAC & Refrigeration
Rating: 8.6/10
The Fieldpiece SM382V Wireless 3-Port SMAN Refrigerant Manifold with Vacuum Gauge is a powerful tool for HVAC and refrigeration pros. It’s a digital gauge that helps you figure out what’s going on with cooling and heating systems. This manifold measures pressures, temperature, and even vacuums, all from one device. It makes checking and fixing systems much easier and more accurate.
What We Like:
- It’s an advanced digital tool for HVAC and refrigeration jobs.
- It accurately measures low and high pressures, plus superheat and subcooling.
- It has special jacks to plug in temperature probes for pipes and outdoor air.
- The four-valve setup includes a vacuum gauge.
- It can connect to Job Link Psychrometer probes for more data.
- It can log data and test if a system is holding pressure even when temperatures change.
- It’s wireless, which means less mess with hoses.
What Could Be Improved:
- The initial cost might be higher than basic analog gauges.
- Learning all its advanced features might take a little time.
This SMAN manifold is a smart investment for anyone serious about HVAC and refrigeration work. It brings precision and efficiency to your diagnostics and service tasks.
Your Essential Guide to HVAC Manifold Gauges
HVAC manifold gauges are super important tools for anyone working with air conditioning and refrigeration systems. They help you check the pressure of refrigerant, which is like the “blood” of your AC. This lets you know if your system is working right or if something needs fixing.
Why You Need Manifold Gauges
Imagine your AC is a car. The manifold gauge is like the dashboard. It shows you important information about how your car (AC) is running. Without it, you wouldn’t know if the engine (compressor) is working hard enough or if there’s enough fuel (refrigerant).
Key Features to Look For
When you shop for manifold gauges, keep these features in mind:
- **Number of Valves:** Most sets have two valves. This is good for checking both the high and low sides of your AC system at the same time. Some professional sets have three valves for more complex jobs.
- **Gauge Type:** You’ll see analog and digital gauges. Analog gauges use needles, like on an old clock. Digital gauges show numbers on a screen. Digital ones are often easier to read and can be more precise.
- **Hose Length:** Longer hoses give you more reach. This is helpful if your AC unit is hard to get to.
- **Compatibility:** Make sure the gauges work with the type of refrigerant your AC uses. Common refrigerants include R-134a, R-410A, and R-22.
- **Durability:** Look for sturdy construction. These tools can get bumped around.
Important Materials
The materials used in manifold gauges affect how long they last and how well they work.
- **Brass:** Many parts, like the body of the gauge, are made of brass. Brass is strong and doesn’t rust easily.
- **Rubber or PVC Hoses:** The hoses carry the refrigerant. Good quality hoses resist cracking and leaking.
- **Metal or Plastic Gauge Covers:** These protect the delicate gauge faces. Metal offers more protection.
Factors That Improve or Reduce Quality
Good manifold gauges make your job easier and more accurate.
What Makes Them Better?
- **Clear, Large Dials:** Easy-to-read gauges save you time and prevent mistakes.
- **Smooth Valve Operation:** Valves that turn easily and seal well are a sign of quality.
- **Accurate Readings:** The most important thing is that the gauges show the correct pressure.
- **Built-in Sight Glass:** This small window lets you see the refrigerant flow, which helps spot problems like air or moisture.
What Makes Them Worse?
- **Flimsy Construction:** If the tool feels cheap and light, it might not last long.
- **Leaky Valves:** Even a small leak can give you wrong readings and waste refrigerant.
- **Hard-to-Read Dials:** Small numbers or foggy glass make them frustrating to use.
- **Inaccurate Readings:** This is the worst problem. It can lead to overcharging or undercharging your system, which damages it.
User Experience and Use Cases
Using manifold gauges is pretty straightforward once you know what you’re doing.
For DIYers
If you’re a homeowner who likes to do some basic AC maintenance, a simple two-valve analog set can be a great starter tool. You can use it to check if your AC is low on refrigerant, which is a common reason for poor cooling. You can also use it to see if the pressures are within the normal range after you’ve added refrigerant.
For Professionals
HVAC technicians use manifold gauges all the time. They are essential for:
- **Diagnosing Problems:** Gauges help them figure out why an AC isn’t cooling properly.
- **Charging Systems:** They use gauges to add the exact amount of refrigerant needed.
- **System Checks:** Technicians check pressures regularly to make sure systems are running efficiently.
- **Leak Detection:** Sometimes, unusual pressure readings can point to a refrigerant leak.
Frequently Asked Questions (FAQ)
Q: What are the main Key Features of HVAC manifold gauges?
A: Key features include the number of valves (usually two or three), the type of gauge (analog or digital), hose length, and compatibility with different refrigerants.
Q: What are the important materials used in manifold gauges?
A: Important materials are brass for the body, and durable rubber or PVC for the hoses. Metal gauge covers offer better protection.
Q: What factors improve the quality of manifold gauges?
A: Quality is improved by clear, large dials, smooth and sealing valves, accurate pressure readings, and features like a sight glass.
Q: What factors reduce the quality of manifold gauges?
A: Reduced quality comes from flimsy construction, leaky valves, hard-to-read dials, and inaccurate readings.
Q: Can a beginner use HVAC manifold gauges?
A: Yes, simple two-valve analog sets are good for beginners to check basic AC system pressures.
Q: What is a common use case for manifold gauges?
A: A common use case is checking refrigerant levels to see if a system needs more refrigerant.
Q: Are digital or analog gauges better?
A: Digital gauges are often easier to read and more precise, but analog gauges are simpler and can be more affordable.
Q: How important is hose length?
A: Hose length is important for reaching AC components, especially in tight spaces.
Q: What does a sight glass on manifold gauges do?
A: A sight glass lets you see the refrigerant flow, helping you spot air or moisture in the system.
Q: Should I buy gauges for a specific refrigerant type?
A: Yes, it’s best to buy gauges that are compatible with the refrigerant your HVAC system uses.
In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.
If you have any questions or feedback, please share them in the comments. Your input helps everyone. Thank you for reading.
